FOREST SHUTTLE®




Troublefree, silent and motorised by remote, app or domotics control.




In today's technical world, smart homes are on the rise. This trend includes drapery hardware and Forest Shuttle® motors are a smart choice for home integration. Capable of integrating with all major home automation systems, the Forest Shuttle® is offered in 5 versions. Forest Shuttles motors are trouble-free, ultra-quiet and come with a 10-year warranty, three more reasons they are a smart motorisation choice for your smart home innovation.

PRODUCT INFORMATION

All Shuttle® motors offer the following functions:

  • Controlling the curtains by Diamond Sense Remote control or wall switch by integrated Radio Frequency;

  • Integrated Emergency Control with automatic de­clutch in case of power failure, to ensure a manual operation of the curtains (standard feature);

  • Third-Party App control by Forest Wireless Connector;

  • Ultra Silent motor;

  • Slow start and slow stop

  • Full automatic setting of the limits;

  • Stack-back position programmable to every desired setting;

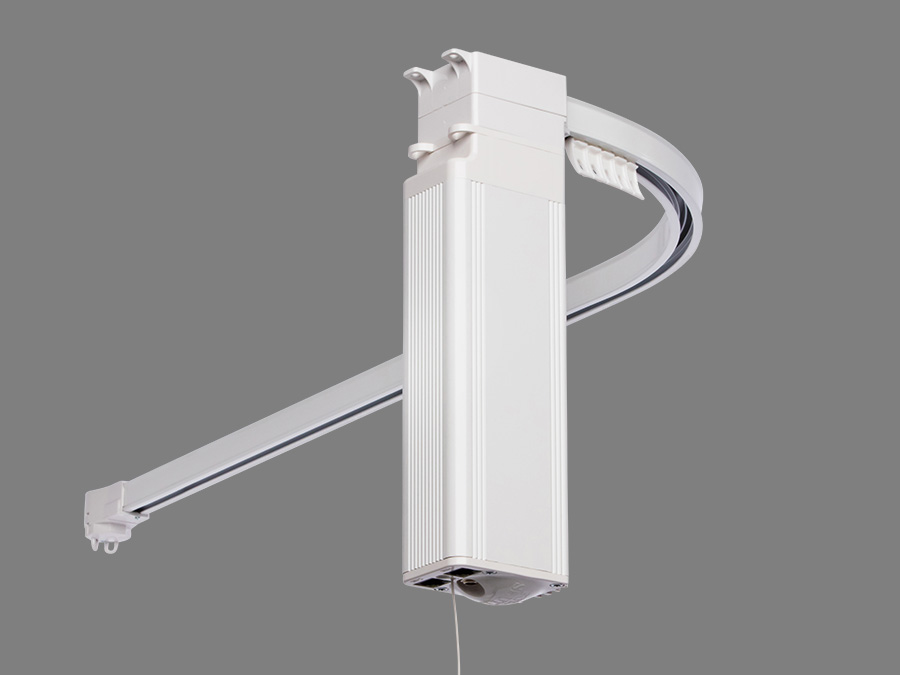

  • Can be used with curved track;

  • Programming of intermediate positions possible;

  • Motors can be used in combination with various motorised track systems like: Forest Motorised Track System (standard option), motorised rod (MRS) and design track system (DS-XL LED);

  • Tandem motor application possible as well;

  • Motor can be place upside down for recess installation;

  • All curtain track motors remains hidden behind curtain;

  • All Shuttle motors are warranted for 10 years.

Forest Shuttle
DOWNLOAD

FOREST SHUTTLE®
A SMART CHOICE

When it comes to comfort, the Forest Shuttle® lives up to its expectations. Being able to open and close your drapes remotely, from the comfort of your chair, when you are on holiday, automatically at programmed opening and closing times or even linked to variable sunrise and sunset times. The Forest Shuttle® is the silent force behind the opening and closing of draperies all over the world.

The smooth and silent running curtain track system can, in addition to remote operation, also be operated by hand. Thanks to Touch Impulse technology, a gentle pull on the curtain is enough to activate the motor.

Integrated emergency control ensures manual operation of the drapery in case of power failure. The Shuttle® is capable of integrating in all major home automation systems.

5 types

The Forest Shuttle® motorised system is available in five types:
Shuttle® L, Shuttle® M, Shuttle® S, Shuttle® AC and Shuttle® iOn

FOREST SHUTTLE® L

This curtain motor has an integrated power adaptor and only needs a mains cable. Furthermore, the RF multi receiver is integrated in the motor itself, allowing for an even cleaner look of the system. In addition to this, the motor speed can be increased by up to 20%, allowing for speeds of up to 18 cm per second. Finally, the motor is able to carry curtain weights of up to 40 kg.

On top of that, this motor still incorporates the features that customers and users all around the world have come to love and appreciate, such as the noiseless operation, smooth touch control operation, automatic declutch during power failure and of course the fact that it’s used in combination with the world’s slimmest motorized curtain track system, the FMS® rail, which can be made in lengths of up to 14 meters.

The Shuttle® L integrates with your smart home technology via dry contacts and RS485 protocol for use with popular automation systems including Lutron, Control 4, Crestron, Somfy, and many others. The Z-Wave Shuttle L offers app control through Samsung's SmartThing and Amazon's Echo or Google Home devices. Or, use Z-wave's mesh network to integrate via dry contacts.


WHAT ELSE THE SHUTTLE® L HAS TO OFFER
  • Plug & Play Motor;

  • Integrated power adaptor;

  • Max. Curtain weight: 40 kg;

  • Touch Control Technology, gently pulling the curtain by hand will activate the motor (standard feature);

  • Modular motor, different modules can be attached for various control options: lnfrared, Building Automation/Hotel Control;

  • Z-Wave Plus integration possible;

  • Available colours: white, silver, black.


TECHNICAL INFORMATION SHUTTLE® L

Voltage Shuttle®

100 - 240V~ 50 - 60hz

RF Multi Receiver

Internal

Power Supply

Internal

Max. power

40 W

Torque

1 Nm

Speed

14 – 17 cm/s

Noise Level

< 40 dB(A)

Max. curtain weight

40 kg

Dimensions Motor

7 x 5 x 28 cm

Net. weight motor

975 gr.

Dimensions Power Supply

-

Protection degree

IP20

Max. running time

240 sec. (in one direction)

Certification & Marking

CE

FOREST SHUTTLE® ION (BATTERY MOTOR)


Our bestselling Forest Shuttle® system is now also available in a wireless, battery powered version. The Shuttle® iOn is perfect for areas without nearby power points.

An extensive period of research, development and endurance testing on countless of track set-ups has resulted in the launch of the Forest Shuttle® iOn. The Shuttle® iOn’s motor is fitted with an internal, removable heavy duty battery pack. Depending on the track size and curtain weight, the battery only needs to be charged 2 to 3 times a year.

You can expect the same unique functionalities as that of the wired Shuttle® L, like Touch Control technology. The battery motor has an integrated Multi RF receiver, allowing for operation using any Forest remote control option.

Unique in the market
The Shuttle® iOn can be used in combination with curved tracks, which is unique in the market. It fits all Forest motorised track systems, like our most used motorised track system FMS®,  motorised rod system MRS® and the motorised design track system with LED lighting, the DS®-XL LED system.


WHAT ELSE THE SHUTTLE® ION HAS TO OFFER

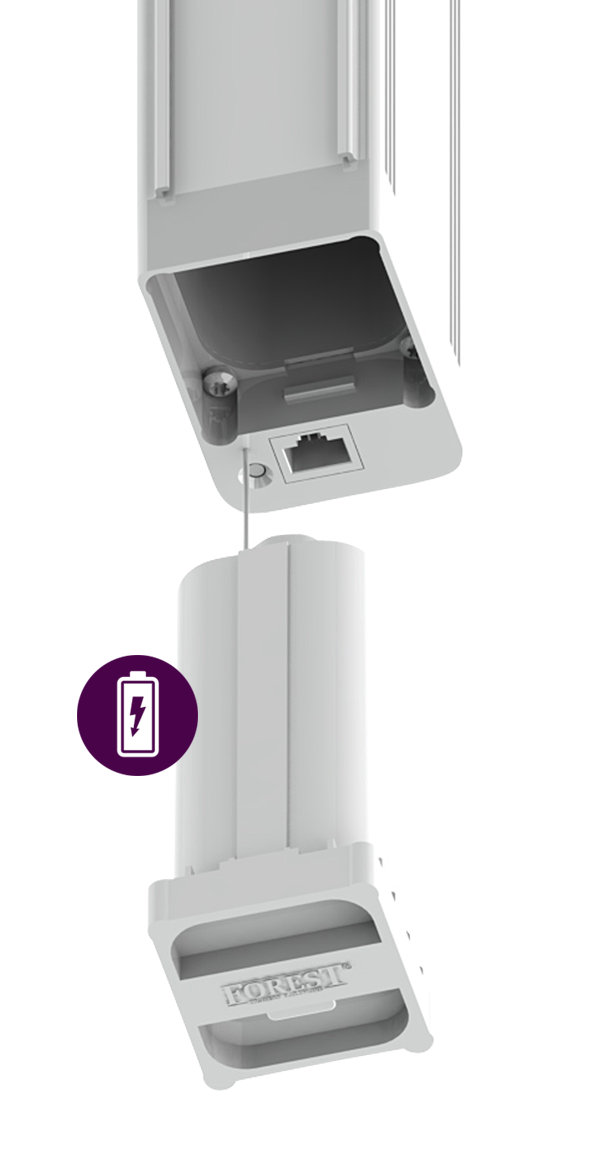

  • Li-ion rechargeable battery pack;

  • Touch Control Technology, gently pulling the curtain by hand will activate the motor;

  • Suitable for curtains up to 25 kg and 8 meter track (straight track)

  • Suitable for curtain tracks with up to 2 bends in, for example, bay windows.

  • A single full charge will last up to 6 months.

  • Available colours: white, black


TECHNICAL INFORMATION SHUTTLE® ION

Voltage Shuttle®

14.4Vdc

RF Multi Receiver

Internal

Power Supply

Removeable Battery,
Charger input: 100 - 240, 50-60Hz, 2.0A,
Charger output:16,8Vdc 1000mA

Max. power

30 W

Torque

1 Nm

Speed

14 – 17 cm/s

Noise Level

< 40 dB(A)

Max. curtain weight

25 kg

Dimensions Motor

7 x 5 x 32 cm

Net. weight motor

1160 gr.

Dimensions Power Supply

-

Protection degree

IP20

Max. running time

150 sec (in one direction)

Certification & Marking

CE

FOREST SHUTTLE® S

The Forest Shuttle® S is almost identical to the Forest Shuttle® L with the main difference that the housing is smaller than the Shuttle® L (with integrated power adaptor) because the adapter is placed external. In addition, the Shuttle® S is only available in white. The Shuttle® S integrate with your smart home technology via dry contacts and RS485 protocol for use with popular automation systems including Lutron, Control 4, Crestron, Somfy, and many others.


WHAT ELSE THE SHUTTLE® S HAS TO OFFER
  • Plug & Play Motor

  • External power adaptor

  • Max. Curtain weight: 40 kg

  • Touch Control Technology, gently pulling the curtain by hand will activate the motor;

  • Modular curtain motor, different modules can be attached for various control options: lnfrared, Building Automation/Hotel Control;

  • Available colour: white, black


TECHNICAL INFORMATION SHUTTLE® S

Voltage Shuttle®

24Vdc

RF Multi Receiver

Internal

Power Supply

External,

100 - 240Vac - 0,8A - 50 - 60hz; output 24Vdc - 2,5A

Max. power

40 W

Torque

1 Nm

Speed

14 – 17 cm/s

Noise Level

< 40 dB(A)

Max. curtain weight

40 kg

Dimensions Motor

7 x 5 x 20 cm

Net. weight motor

700 gr.

Dimensions Power Supply

50 x 80 x 30 mm

Protection degree

IP20

Max. running time

240 sec. (in one direction)

Certification & Marking

CE



FOREST SHUTTLE® M


The Forest Shuttle® M is the most powerful curtain track motor of the Shuttle® Series. The curtain motor is able to carry curtain weights of up to 70kg. Because the adapter is placed external the Shuttle® M housing is little bit smaller than the Shuttle® L with integrated power adaptor. The Shuttle® M integrates with your smart home technology via dry contacts and RS485 protocol for use with popular automation systems including Lutron, Control 4, Crestron, Somfy, and many others. The Z-Wave Shuttle® M offers app control through Samsung's SmartThing and Amazon's Echo or Google Home devices. Or, use Z-wave's mesh network to integrate via dry contacts.


WHAT ELSE THE SHUTTLE® M HAS TO OFFER
  • Plug & Play Motor;

  • External power adaptor;

  • Max. Curtain weight: 70 kg;

  • Touch Control Technology, gently pulling the curtain by hand will activate the motor;

  • Modular motor, different modules can be attached for various control options: lnfrared, Building Automation/Hotel Control;

  • Z-Wave integration possible;

  • For Skylight System (FSS®) special Shuttle® M with receiver and fixed drive is available;

  • Available colours: white, black


TECHNICAL INFORMATION SHUTTLE® M

Voltage Shuttle®

24Vdc

RF Multi Receiver

Internal

Power Supply

External,

1,5A - 50-60hz; output 24Vdc - 2,7A

Max. power

65 W

Torque

1,5 Nm

Speed

14 – 17 cm/s

Noise Level

< 40 dB(A)

Max. curtain weight

70 kg

Dimensions Motor

7 x 5 x 23 cm

Net. weight motor

930 gr.

Dimensions Power Supply

50 x 110 x 30 mm

Protection degree

IP20

Max. running time

175 sec. (in one direction)

Certification & Marking

CE

FOREST SHUTTLE® AC


The Forest Shuttle AC® motor and the Forest Shuttle® L motor look like twins, but they’re really different in some ways. Just like it’s luxurious sister, the Shuttle AC® motor stands for reliability, solidity and a smooth operation. The biggest difference is that this curtain motor is primarily a solution for 230 Volt hard-wired building management systems.

Integrating in Building Automation System​
If you are looking for a curtain system that is easy to integrate into a building automation system the Shuttle® AC is a smart solution. Your project or hotel already has a building automation system? The AC motor connects to virtually any system. The big advantage of the AC motor that a data cable is not necessary any more. Ideal for refurbishment projects. The motor will use 100 – 240 V to open or close the curtain. In case of power failure you can open or close the curtain manually. The end limits of the motor will be set automatically.



WHAT ELSE THE SHUTTLE® AC HAS TO OFFER
  • Easy integration Building Automation System; no more data cable necessary

  • Suitable for 230 Volt hard-wird building management systems

  • Max. Curtain weight: 40 kg

  • Available colour: white


TECHNICAL INFORMATION SHUTTLE® AC

Voltage Shuttle®

100 - 240V~ 50 - 60hz

RF Multi Receiver

Internal

Power Supply

Internal

Max. power

40 W

Torque

1 Nm

Speed

14 – 17 cm/s

Noise Level

< 40 dB(A)

Max. curtain weight

40 kg

Dimensions Motor

7 x 5 x 28 cm

Net. weight motor

975 gr.

Dimensions Power Supply

-

Protection degree

IP20

Max. running time

240 sec. (in one direction)

Certification & Marking

CE

MOTORISED CURTAIN TRACKS OPTIONS

Standard the Forest Shuttle motors are applicable on the FMS® track system. The Shuttle® M can also be used with a Skylight system (FSS®). More decorative options are also available:


CONTROL OPTIONS


Building automation / App control

Designed for use in any building automation system through the integrated dry contact port in the motor. 230V direct control is possible with the optional Dry Contact Relay. The BUS ports allow for individual and group controls of the motors. Controlling your smart curtains by your smartphone or tablet is also possible with our app solutions: wireless connector and WiFi dongle.




Touch Control technology

A gentle pull will activate the curtain thanks to the smart Touch Control Technology of the motor.






Integrated emergency control

In case of power failure, the curtain can still be moved manually. Standard feature.




Diamond Sense remote control

Available in white and black, can be used to control all Forest motorised window decoration systems. With 15 curtain systems individually and in group by integrated timer function or manual.







Z-Wave domotica

Wireless Domotics communication with data feedback and automatic routing in a mesh-network environment. open protocol with “Scene Control”.

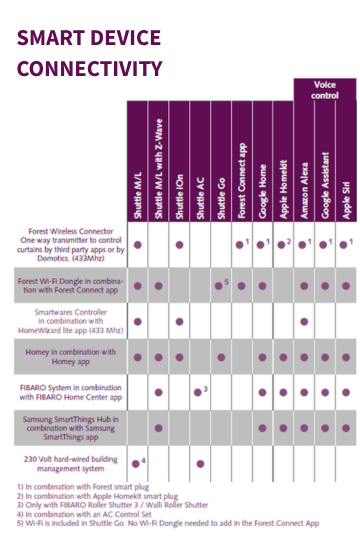

SMART DEVICE CONNECTIVITY


Voice Control


Shuttle
S/M/L


Shuttle
S/M/L
with
Z-wave


Shuttle
iOn

Shuttle
AC

Forest
Connect
App

Google
Home

Apple
Homekit

Amazon
Alexa

Google
Assistant

Apple
Siri

Forest Wireless Connector
One way transmitter to control curtains by third party apps or by Domotics. (433Mhz)

Forest Wi-Fi Dongle in combination with Forest Connect app

Smartwares Controller in combination with HomeWizard lite app (433 Mhz)

Homey in combination with Homey app

FIBARO System in combination with FIBARO Home Center app

••

Samsung SmartThings Hub in combination with Samsung SmartThings app

230 Volt hard-wired building management system


••

Only with FIBARO Roller Shutter 3 / Walli Roller Shutter


Works with



The Forest Shuttle is compatible with many other Building and Domotic systems, thanks to its modular construction. A competitive advantage over the motorised drapery systems in the world!
