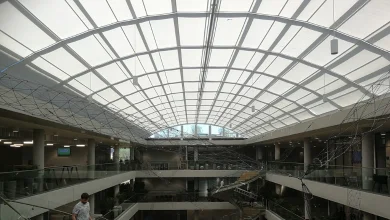

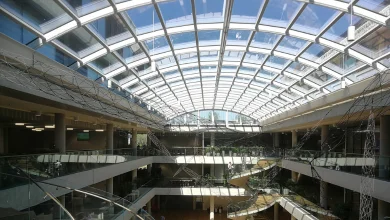

FSS® FOREST SKYLIGHT SYSTEM




Two systems combined, smooth motorised operation to cover a horizontal or sloping skylight window.



PRODUCT INFORMATION

  • The Forest Skylight System is a combination of different Forest systems (FMS and MTS)

  • Easy assembling and smooth operation guaranteed

  • Possible to operate with one motor or a tandem application

  • Both 220V FMS motor or 24V Shuttle motor applicable

  • Maximum size 7 meter long and 3,5 meter wide (without middle support)

  • Bendable; it can be curved with a 20 cm (8”) radius or continuously curved

  • The fabric can be made to cover wall to wall

  • For horizontal and vertical installation

  • Colour available: white


Forest Skylight System
DOWNLOAD

FOR USE IN

Hotels - offices - residences or any location where a motorized Skylight system is required

PROFILE

FMS TRACK
  • Weight: 303 grams per meter (3,25 ounce per ft.)

  • Aluminium Extrusion

  • Size: 20 x 20 mm (0.79 x 0.79”)

MTS TRACK
  • Weight: 500 grams per meter (5,36 ounce per ft.)

  • Aluminum Extrusion

  • Size: 20 x 30 mm (0.79 x 1.2”)

.

,
