FMS®  MOTORISED TRACK SYSTEM

Smooth and noiseless belt driven motorised curtain track

PRODUCT INFORMATION

  • Compact and noiseless belt driven motorised  curtain track system

  • All Shuttle® motors can be used on the FMS® System

  • The FMS track is in 3 versions avaible: FMS, FMS Plus & FMS Plus with recess profile

  • Available in white, silver and black

  • Assembly components are in similar colour available as track colours

  • Clickable off-set carriers for a straight heading of the curtain; rolling carriers and FES® Easyflex carriers also available

  • Especially designed for use in combination with Forest Wave System

  • Motor can be mounted on the left or the rigth of the track

  • One-way draw or center (split) draw curtains possible

  • All KS® bracket compatible

  • Ceiling brackets and wall brackets available

  • FMS® track can be made in lengths of up to 14 meter

  • FMS® track can be curved/bended

  • Recess fixation possible by recess profile in combination with FMS® Plus track.High Frequency Technology

  • Warranty: 10 years


FMS
DOWNLOAD

SPECIFICATIONS TRACK
  • Weight: 303 gr/mtr (3,25 ounce/ft.)

  • Aluminium Extrusion

  • Size: 20 x 20 mm (0.79 x 0.79”)

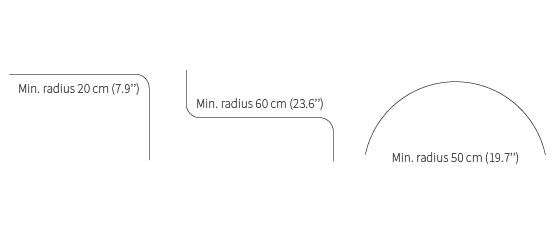

BENDING/CURVING

The motor can be used in a track with one or two bends of 90 degrees. The track can be bent and reversed bent with a radius of 20 cm (8”). Continuous curving can be done with the electric powered bender.


FOR USE IN

Hotels - offices - residences - boats - campers - planes or any location where an efficient cord traversing system is required.



TANDEM APPLICATIONS

More information is available on request.


FMS® PLUS

This Forest motorised curtain track is ideal for a clean, concealed curtain track installation.

FMS PLUS® AND RECESS FIXATION

Instead of a regular ceiling fix or wall fix installation of the FMS track system, Forest Group also offers a solution for a recess fixed motorized curtain track. The FMS Plus® system is ideal for a clean, concealed curtain track installation. The recess profile can be fitted during the construction of the ceiling, the FMS Plus® motorized track can then be fitted once all the finishing works have been completed. The motor can be placed in a regular position, or inverted into the ceiling. The system can be fitted with regular FMS carriers, rotating carriers or the Forest Wave System.

Forest Shuttle
DOWNLOAD
SPECIFICATIONS FMS PLUS
  • Weight 500 gr/mtr

  • Sizes 19,6x30mm

  • Aluminium Extrusion

SPECIFICATIONS RECESS PROFILE
  • Weight 555 gr/mtr

  • Sizes 26x32.20mm

  • Aluminium Extrusion

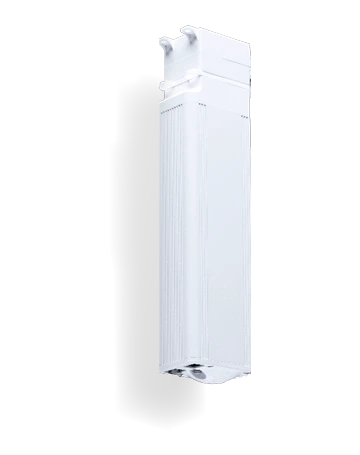

MOTOR OPTIONS

All types of Forest Shuttle motors can be used on the FMS Plus® Track system.


BENDING

A unique feature about this system is that it can be curved and bent, at a radius of just 20 cm. To facilitate this, special 90 degree corner pieces of the recess profile itself are available. Continuous curves up to a minimum radius of 60 cm are also possible.

It is also possible to fix the Forest MTS® Medical Track System into the recess profile, therewith creating a manual recess curtain track. More information on the FMS Plus® system is available in the Forest Shuttle® brochure.


CONTROL OPTIONS


Diamond Sense Remote Control

Wireless, with remote control and/ or switch, 15 or 2 channels.




App / Domotics control

Wired or wireless Domotics or App control is possible.






Switch control

For wiring and connection instructions, consult User/Installation Manual.




Building automation

The FMS can be connected to any Building Automation system, by relay control. Optionally available is a Bi-directional Bus-controller, which enables data feedback communication with for instance AMX/Crestron Automation systems.






Hotel control

The FMS can be connected to any Hotel Automation system, by relay control.



Works with


The Forest Motorised curtainn track system can easily be applied in current Building and Home Automation systems.
