MTS® MEDICAL TRACK SYSTEM

Medical curtain track system for all kinds of medical facilities and sanitary rooms.

MTS® SEPARATION CURTAIN TRACK

The MTS is a flexible rail system for easy and practical space division. Because the system can be bent, it is suitable for a wide range of applications. Especially for hospitals, healthcare facilities, fitting rooms and spaces that need to be divded quickly and efficiently.

Key features:

  • Divider rail system for space partitioning
  • Available in three versions: Standard, Straight and Round
  • Bendable for custom solutions and different shapes
  • Quick and easy installation
MTS, Medical Track System
DOWNLOAD

APPLICATIONS

The MTS® series consists of rails designed for flexible space division. With this partitioning system, you can easily create separate areas in hospitals, healthcare facilities, fitting rooms and changing rooms.

Because the MTS® rails can be bent, spaces can be laid out exactly as required. The system is widely used in hospitals, but is also a surprisingly practical solution for applications such as fitting rooms.

CASE STUDIES

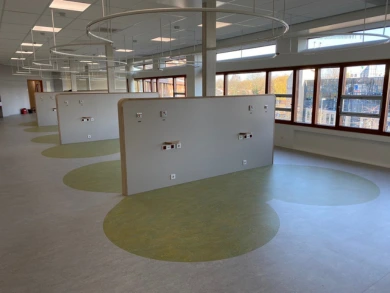

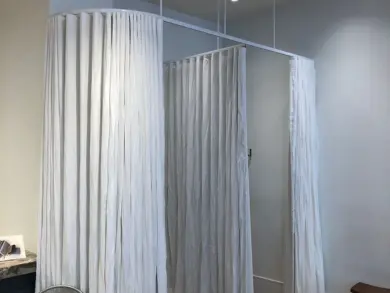

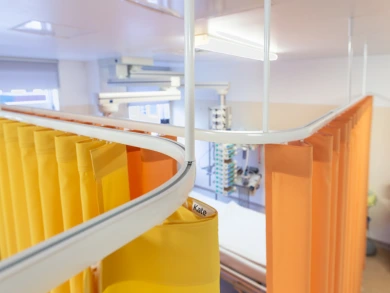

Below you can see three examples of the MTS® in practice. In a children’s hospital in Latvia, beds are separated using curtains. In a hospital in Rotterdam, the rail has been installed in a clover-shaped layout. And in a fitting room in Canada, curved rails have been used to create two separate fitting rooms.

THE DIFFERENT MTS® SYSTEMS

The MTS® series consists of three different types of rails. Each type has its own look, but all variants are suitable for dividing spaces in a practical and efficient way.

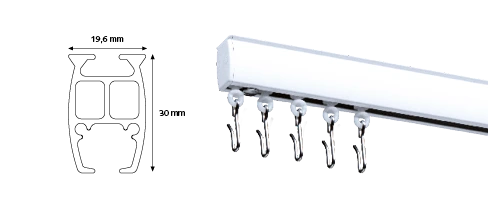

MTS® STANDARD

The MTS® Standard is treated with BioCote®. This is an antimicrobial coating integrated into the material of the rail. The coating continuously inhibits the growth of bacteria, mould and other micro-organisms on the surface. This makes the MTS® Standard a hygienic choice for hospitals and healthcare facilities. In addition, the rail can be bent into almost any desired shape.

MTS® FLAT

The MTS® Flat is a flat rail. This version is suitable for creating separate areas within a larger space, with a clean and functional appearance.

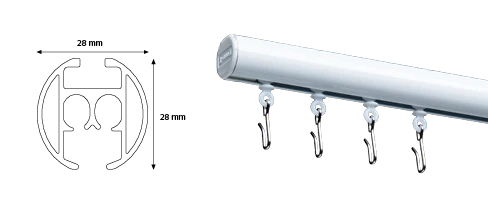

MTS® ROUND

The MTS® Round is a round divider rail. Like the other variants, this rail is designed to divide larger spaces into smaller zones, but with a softer, more rounded look.

PRODUCT ADVANTAGES

  • The rails can be bent into almost any desired shape, making the system highly versatile.
  • The MTS® Standard features an antimicrobial treatment for extra hygiene.
  • Quick and easy installation.

TECHNICAL SPECIFICATIONS

  • Weight: 500 grams per metre
  • Dimensions MTS® Standard: 19.6 × 30 mm
  • Dimensions MTS® Flat: 15 × 33 mm
  • Dimensions MTS® Round: 28 × 28 mm
  • Lengths: 5.80 and 7 metres
  • Available in white
  • Aluminium extrusion
  • Rail coating: chromated aluminium, powder coated

BENDING

The rails can be bent in any direction with a minimum bend radius of 20 cm. Continuous curves and circular shapes are possible with a minimum diameter of 50 cm. Both inward and outward curves are possible with a radius of 20 cm.

FOREST REFERENCE
MTS for a perfect fitting room

Our curtain tracks are ideally suited for fitting rooms, especially our separation rail MTS®. Why? Because the customer can change clothes comfortably, as privacy is guaranteed.

View reference
