FMS® MOTORISED TRACK SYSTEM

Smooth and noiseless belt driven motorised curtain track

PRODUCT INFORMATION FMS®
  • Available finishes: white, matt white, black, matt black, and grey
  • Features clickable off-set carriers for a perfectly straight curtain heading; rolling carriers and FES® Easyflex carriers also available
  • Especially designed for use in combination with Forest Wave System
  • Choice of ceiling- or wall-mounted brackets
  • Can be made in lengths of up to 12 metres (single stack up to 10 metres)
  • Also offered as FMS® Plus and FMS® Plus Recess
  • Supplied with a 10-year warranty
FMS, FMS DUAL & FMS PLUS (RECESS)
DOWNLOAD
TECHNICAL SPECIFICATIONS
  • Weight: 303 grams per metre
  • Dimensions: 20 x 20 mm
  • Available lengths: 7 metres (white also available in 5,80m)
  • Made from aluminium
PROFILE

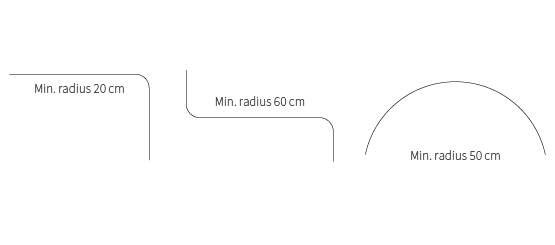

BENDING/CURVING

The FMS® curtain track is fully bendable, making it the perfect solution for bay windows and other curved installations. It can be bent at one or two 90-degree angles, with a minimum bending radius of 20 cm.

For larger or more complex curves, an electric bending machine is available – capable of producing semi-circular shapes and larger bends. Thanks to its flexibility, the FMS® system adapts seamlessly to virtually any space.

FMS® POWERED BY FOREST SHUTTLE® MOTOR

The FMS® electric track is driven by the trusted Forest Shuttle® motor. With multiple Shuttle® options available, there’s always a solution to match your project requirements:

  • Shuttle L: suitable for most applications supports curtain weights up to 40 kg.
  • Shuttle L with Z-Wave: for integration with home automation systems using the Z-Wave protocol.
  • Shuttle M: Designed for heavy curtains supports up to 70 kg.
  • Shuttle M with Z-Wave: heavy-duty motor with smart home integration.
  • Shuttle iOn: battery-powered motor, perfect where no power socket is available.
CONTROLLING THE FMS®

The FMS® motorised curtain track offers smart, comfortable, and effortless control. Choose from remote operation, app control, or hands-free voice commands – it’s entirely up to you.
The FMS® also integrates smoothly with leading home automation systems and smart home hubs.

  • Remote control or wall switch: operate your curtains easily using the RF EasyTouch® remote or the Forest wall switch
  • Forest Connect app: manage your curtains from anywhere with the Forest Connect app
  • Voice control: simply use a voice command to open or close your curtains in seconds, perfect for ultimate comfort from your sofa or armchair

Smart Home integration

The FMS® motorised curtain track seamlessly integrates into your smart home. With compatibility across leading smart home platforms, curtain control becomes a natural part of your automated lifestyle. Schedule routines, synchronise curtains with your lighting or temperature settings, and enjoy superior comfort and efficiency. The FMS® works with:

  • HomeWizard Lite app
  • Home Assistant app
  • Homey Bridge and Homey Bridge Pro (with the Homey app)
  • FIBARO Home Center app
  • Samsung SmartThings app

Building automation systems

The FMS®, powered by the Shuttle® motor, is also ideally suited for integration into professional home and building automation systems. It enables seamless inclusion of curtains within centralised control of lighting, climate, security, blinds, and more.
The FMS® system is compatible with:

  • KNX
  • Busch-Jaeger free@home
  • Z-Wave
  • Crestron
  • Gira
  • Control4
  • Loxone

Please note: Integration with these systems requires an actuator.

Thanks to its modular design, the FMS® with Shuttle® motor is also compatible with many additional home and building automation solutions.
