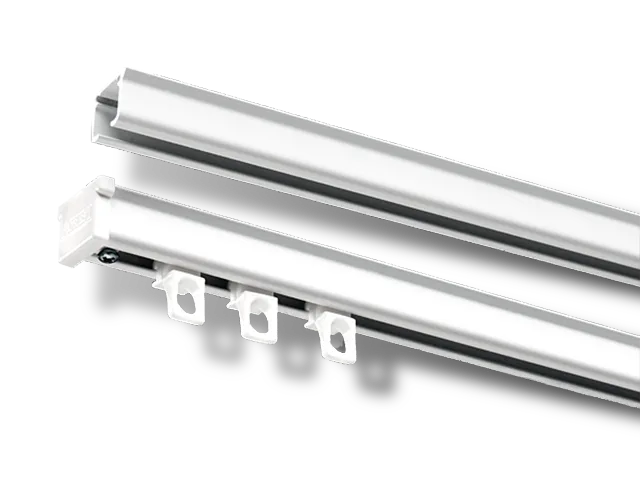

CKS Corded Klick System

Highly efficient cord traversing system with separate internal cord channels; preventing cord sag and eliminating cord tangle.


PRODUCT INFORMATION

  • Highly efficient cord traversing system with separate internal cord channels;
    preventing cord sag and eliminating cord tangle.

  • Quick installation with “Smart Klick” brackets for wall and ceiling applications.

  • Bendable; it can be curved and reverse curved by using a 10 cm (4”) radius
    or continuous curved.

  • Heavy duty clickable carriers -UV protected - for smooth and easy traversing.
    Offset shape for straight hanging pleats.

  • Can also be used for ripplefold or accordiafold drapery systems.

  • Maximum fabric weight: ± 6 kg per meter (4,5 LBS per ft.).

  • Colours available: white and silver.

  • Available lengths: 4 meter (13’1”), 5 meter (16’4”), 6 meter (19’8”),).

  • Track finish: chromated powder coated with a factory applied patented dry lubricant.

  • Limited lifetime warranty.



CKS
DOWNLOAD

PROFILE
  • Aluminium Extrusion

  • Weight: 202 grams per meter (2.17 ounce per ft.)

  • Dimensions: 14 mm x 20 mm (0,6” x 0,8”).


FOR USE IN

Hotels - offices - residences - boats - campers - planes or any location where an efficient cord traversing system is required.



APPLICATIONS

.

,
